Ford Explorer: Transmission Cooling - 10-Speed Automatic Transmission – 10R60 / Description and Operation - Transmission Cooling - Component Location

Ford Explorer 2020-2024 Service Manual / Powertrain / Automatic Transmission / Transmission Cooling - 10-Speed Automatic Transmission – 10R60 / Description and Operation - Transmission Cooling - Component Location

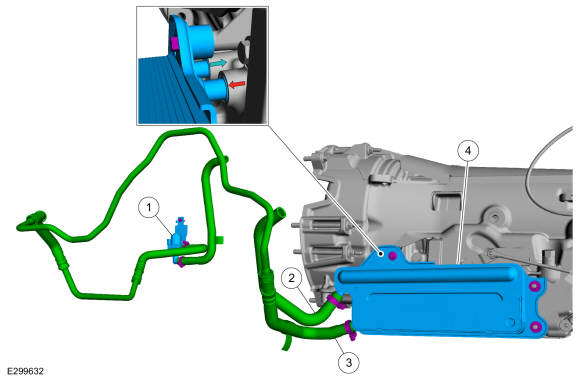

2.3L EcoBoost


Item Description
1 Transmission fluid cooler coolant control valve
2 Transmission fluid cooler coolant inlet hose
3 Transmission fluid cooler coolant outlet hose
4 Transmission fluid cooler

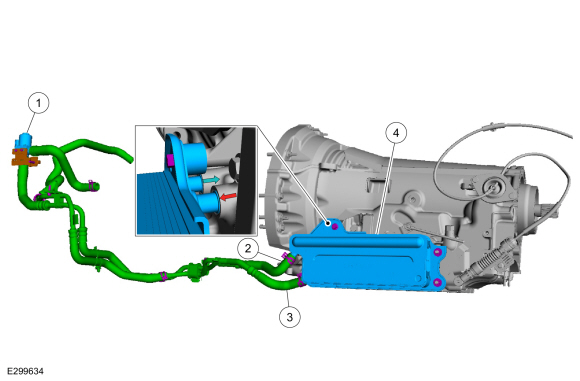

3.0L EcoBoost


Item Description
1 Transmission fluid cooler coolant control valve
2 Transmission fluid cooler coolant inlet hose
3 Transmission fluid cooler coolant outlet hose
4 Transmission fluid cooler

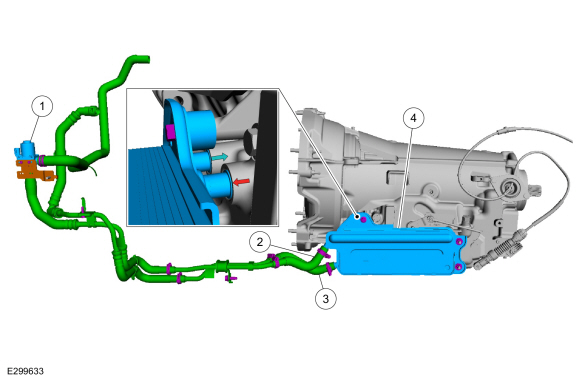

3.3L Duratec


Item Description
1 Transmission fluid cooler coolant control valve
2 Transmission fluid cooler coolant inlet hose
3 Transmission fluid cooler coolant outlet hose
4 Transmission fluid cooler

    Description and Operation - Transmission Cooling - Overview

    The transmission fluid cooling system consists of a heat exchanger mounted to the transmission. The heat exchanger has both transmission fluid and engine coolant flowing through it in separate cham..

    Diagnosis and Testing - Transmission Cooling

    Diagnostics in this manual assume a certain skill level and knowledge of Ford-specific diagnostic practices. REFER to: Diagnostic Methods (100-00 General Information, Description and Operation)...
