Ford Explorer: Rear Suspension / Removal and Installation - Wheel Studs

Ford Explorer 2020-2024 Service Manual / Chassis / Suspension / Rear Suspension / Removal and Installation - Wheel Studs

Special Tool(s) / General Equipment

Hydraulic Press

Removal

  1. Remove the wheel bearing and wheel hub.
    Refer to: Wheel Bearing and Wheel Hub (204-02 Rear Suspension, Removal and Installation).
    Refer to: Wheel Bearing and Wheel Hub (204-02 Rear Suspension, Removal and Installation).

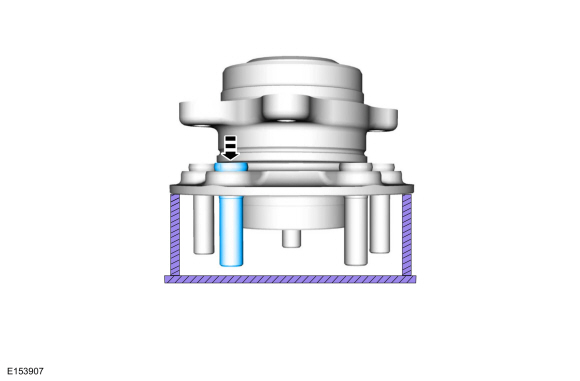

  1. Press the wheel stud from the wheel bearing and wheel hub.
    Use the General Equipment: Hydraulic Press
  1. Inspect the wheel bearing and wheel hub for damage. Replace as necessary.

Installation

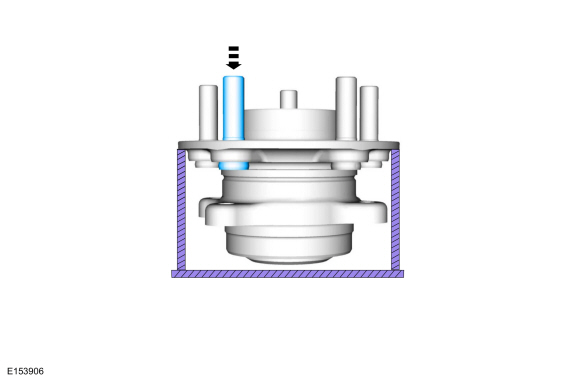

  1. Press the wheel stud into the wheel bearing and wheel hub.
    Use the General Equipment: Hydraulic Press
  1. Install the wheel bearing and wheel hub.
    Refer to: Wheel Bearing and Wheel Hub (204-02 Rear Suspension, Removal and Installation).
    Refer to: Wheel Bearing and Wheel Hub (204-02 Rear Suspension, Removal and Installation).
