Ford Explorer: Body Repairs - General Information / Description and Operation - Complete Panel Replacement/Partial Replacement

Ford Explorer 2020-2024 Service Manual / Body and Paint / Body and Paint / Body Repairs - General Information / Description and Operation - Complete Panel Replacement/Partial Replacement

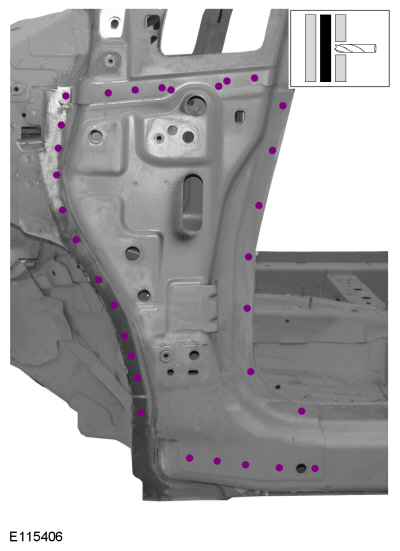

Partial Replacement

Item Description
1 Sectioning area
2 Manufacture weld joint

Decision Criteria

The following points a crucial to the decision of complete or partial replacement of the part(s).

  • Is the repair economically feasible.
  • Retention/integrity of the original joint.

In addition, sectioning or partial panel replacement must meet standardized guidelines or approved procedures in the model specific workshop manual for a sectional replacement solution in the damaged area.
For additional information, refer to: Body Panel Sectioning (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, General Procedures).

Depending on the damaged area, the following points need to be considered when determining whether to perform a partial repair or complete replacement:

  • Sectioning cuts should be as short as possible.
  • Feature lines and panel margins must meet original manufacture design.
    For additional information, refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).
    .
  • Inner reinforcement panels must not limit the straightening work.
  • Inner reinforcement profiles in the pillar areas must allow for separation.
  • Partial replacements on structural frame sections must be allowed for the specific vehicle being repaired. If no procedure exists, it must be assumed no sectioning is allowed.
  • The large surface welding seams at the connections must be restored.

Advantages of Partial Replacement

A partial replacement repair offers many advantages for a professional repair of accident damage:

  • Repairs can be made both in the outer panel area (e.g. side frame) and in the inner areas (e.g. structural member, trunk floor).
  • The repair can be limited to the actual damaged area.
  • Reduction of repair costs, as aggregates and other components can usually remain in the vehicle.

Complete Replacement

In a complete replacement, the original connections are largely reused.

A complete replacement is advantageous if the damaged body part can be detached from its original connections and the replacement part can be fitted without creating additional joints.

A complete replacement is necessary if there is no sectional replacement solution.

    Specifications

      General Specifications Item Specification Plug Weld hole 8 mm (0.315 in) Weld Wire ER70S-3 0...

    Description and Operation - Impact of Insufficient Repair Quality

    Body repairs usually require a significant level of intervention in the existing body shell structure. The corrosion protection, seals and NVH components are destroyed and must be replaced...
