Ford Explorer: Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Description and Operation - Low One-Way Clutch Assembly

Ford Explorer 2020-2025 Service Manual / Powertrain / Automatic Transmission / Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Description and Operation - Low One-Way Clutch Assembly

One-Way Clutch (OWC) Exploded View

Item Description
1 Front support assembly
2 One-Way Clutch (OWC)
3 Sun gear No. 1
4 Sun gear No. 2
IPTV Free Trial

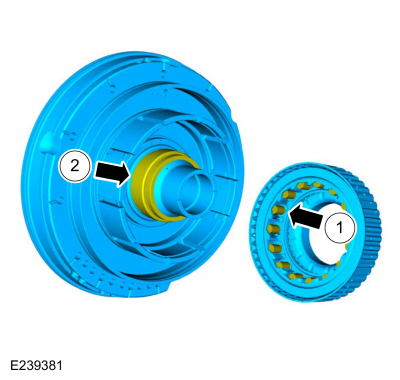

One-Way Clutch (OWC) Mechanical Operation

The One-Way Clutch (OWC) is a brake clutch that holds the sun gears No. 1 and 2 in one direction and allows it to freewheel in the opposite direction eliminating engine braking in 1st gear when the transmission is in drive. The rollers of the OWC lock to a inner race that is part of the front support assembly.

  1. One-Way Clutch (OWC) rollers
  1. One-Way Clutch (OWC) inner race
