Ford Explorer: Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Description and Operation - Transmission Description

Ford Explorer 2020-2024 Service Manual / Powertrain / Automatic Transmission / Automatic Transmission - 10-Speed Automatic Transmission – 10R60 / Description and Operation - Transmission Description

Transmission Assembly


Item Part Number Description
1 79027902 Torque converter
2 W714629W714629 Transmission fluid pan stud bolts (6 required)
3 W500215W500215 Transmission fluid pan bolts (12 required)
4 7A1947A194 Transmission fluid pan
5 7A1917A191 Transmission fluid pan gasket
6 7E3897E389 Transmission fluid level indicator and plug assembly
7 W708500W708500 Transmission fluid auxiliary pump tube bolt (model dependent)
8 7A2097A209 Transmission fluid auxiliary pump tube (model dependent)
9 W718548W718548 Transmission fluid auxiliary pump bolts (3 required) (model dependent)
10 7P0867P086 Transmission fluid auxiliary pump (model dependent)
11 7J1357J135 Transmission fluid auxiliary pump tube seal (model dependent)
12 W700123W700123 Transmission fluid filter bolt (71 mm length)
13 W500214W500214 Transmission fluid filter bolt (20 mm length)
14 7G1867G186 Transmission fluid filter
15 W708500W708500 Main control-to-transmission case bolts (68 mm length) (8 required)
16 7A1007A100 Main control assembly
17 7N2657N265 Main control-to-transmission fluid pump seal
18 7M1837M183 Intermediate Speed A (ISSA) sensor
19 7M1017M101 Turbine Shaft Speed (TSS) sensor
20 7H1037H103 Intermediate Speed B (ISSB) sensor
21 7H1037H103 Output Shaft Speed (OSS) sensor
22 W500213W500213 Transmission internal wiring harness bolts (2 required)
23 7G2767G276 Transmission internal wiring harness
24 W500215W500215 Transmission fluid pump bolts (4 required)
25 7A1037A103 Transmission fluid pump
26 7Z3027Z302 Transmission fluid pump seal
27 66586658 Transmission fluid pump driven gear outer cover
28 W718158W718158 Transmission fluid pump retaining ring
29 7A0807A080 Transmission fluid pump driven gear
30 W504755W504755 Transmission fluid pump driven gear inner cover bolts (2 required)
31 66586658 Transmission fluid pump driven gear inner cover
32 7K4407K440 Output shaft flange nut (RWD only)
33 7A0217A021 Output shaft flange (RWD only)
34 7N1357N135 Anti-ting washer (RWD only)
35 7G1007G100 Manual control shaft-to-Transmission Range (TR) sensor roll pin
36 W712713W712713-S442-S442 Park override lever nut
37 7J1677J167 Park override lever
38 7C4937C493 Manual control shaft
39 7H5577H557 Transmission Range (TR) sensor
40 7L2527L252 Park return spring
41 7D4107D410 Park pawl actuator rod
42 W716607W716607 Transmission Range (TR) sensor detent spring bolt
43 7E3327E332 Transmission Range (TR) sensor detent spring
44 7N1347N134 Front support assembly bolts (12 required)
45 7G0337G033 Front support assembly
46 7M1577M157-C-C B clutch (overdrive) snap ring
47 7C5767C576 B clutch (overdrive) pressure plate
48 7B4427B442-A-A B clutch (overdrive) steel plates (quantity model dependent)
49 7B1647B164 B clutch (overdrive) friction plates (quantity model dependent)
50 7J4027J402 B clutch (overdrive) separating springs (quantity model dependent)
51 7B4427B442-B-B B clutch (overdrive) apply plate
52 7G2067G206 One-Way Clutch (OWC)
53 7G4187G418 B clutch (overdrive) piston
54 7N1697N169 A clutch (intermediate) piston return spring snap ring
55 7G2977G297 A clutch (intermediate) piston return spring
56 7J0157J015 A clutch (intermediate) piston
57 7F2257F225 A clutch (intermediate) piston inner seal
58 7F2247F224 A clutch (intermediate) piston outer seal
59 7B0317B031 Front support-to-case seal
60 7M1577M157-J-J Torque converter hub seal snap ring
61 7A2487A248 Torque converter hub seal
62 W500204W500204 Front support cover and seal assembly bolt
63 7M1577M157 Front support cover and seal assembly snap ring
64 75707570 Front support cover and seal assembly
65 7F0737F073 Transmission fluid pump drive gear
66 66516651 Transmission fluid pump idler gear
67 7Z4267Z426 Transmission fluid pump idler gear bearing
68 7G0907G090 Stator support seal
69 Clutch and planetary assembly
70 7P0807P080 A clutch (intermediate) wave spring
71 7A4067A406 A clutch (intermediate) apply plate (select fit)
72 7F2197F219 A clutch (intermediate) friction plates (quantity model dependent)
73 7F2207F220 A clutch (intermediate) steel plates (quantity model dependent)
74 7G1597G159 A clutch (intermediate) separating springs (quantity model dependent)
75 7B4377B437 A clutch (intermediate) pressure plate
76 7J3007J300 Selective shim
77 7H0327H032 Thrust bearing (T3)
78 7M1527M152-A-A Thrust bearing (T9)
79 7A0497A049 Output shaft and planetary carrier No. 4 assembly (model dependent)
80 7D0197D019 Output shaft seals (2 required)
81 7D1467D146 Thrust bearing (T10)
82 7G1007G100 Park pawl actuator rod sleeve roll pin
83 2N6132N613 Park pawl actuator rod sleeve
84 2D3302D330 Park pawl actuator rod sleeve seals (2 required)
85 W715937W715937 Plug assembly transmission case
86 W716240W716240 Plug assembly park pawl shaft
87 7D0717D071 Park pawl shaft
88 7A4417A441 Park pawl
89 7D0707D070 Park pawl return spring
90 70527052 Output shaft seal (model dependent)
91 70307030 Output shaft ball bearing snap ring (RWD only)
92 7R2057R205 Output shaft ball bearing (RWD only)
93 7A4157A415 Output shaft bearing (4WD)
94 7B3147B314 Fluid passage sleeve
95 7A4157A415 Output shaft bearing
96 7F3377F337 Manual control shaft seal
97 W715937W715937 Plug (line pressure tap)
98 7G0637G063 Transmission case vent assembly
99 70067006 Transmission case
лучшее казино онлайн России

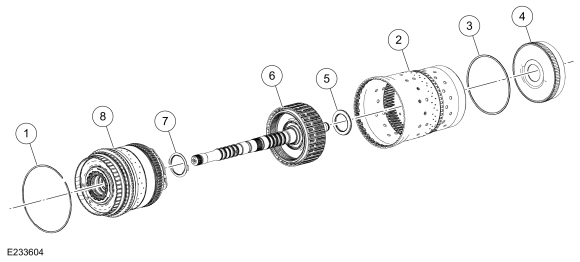

Clutch and planetary assembly


Item Part Number Description
1 7H5797H579 Planetary carrier No.1 snap ring
2 7B1777B177 Cylinder (clutch and planetary container)
3 7B0027B002 Ring gear No. 4 snap ring
4 7D1637D163 Ring gear No. 4
5 7M1527M152 Thrust bearing (T8)
6 E clutch and input shaft assembly
7 7F3737F373 Thrust bearing (T6)
8 CDF clutch and planetary carrier assembly

CDF Clutch and planetary carrier assembly


Item Part Number Description
1 7D3927D392 Ring gear No. 2
2 7H3797H379 Ring gear No. 2 snap ring
3 7D1597D159 Shaft (sun gear No 3)
4 7B3997B399 Shaft (sun gear No 3) Teflon® seals (4 required)
5 7D2837D283 Thrust bearing (T5)
6 7H5787H578 Fluid collector
7 7A3987A398 Planetary carrier No. 2
8 7H5807H580 Sun gear No. 2
9 7G2307G230 Sun gear No. 1
10 11951195 Ring gear No. 1 bearing support locking ring
11 7P0747P074 Ring gear No. 1 bearing support
12 7C0967C096 Ring gear No. 1 bearing
13 7P1367P136 Ring gear No. 1
14 7C0967C096 Ring gear No. 1 bearing
15 7G2187G218 Planetary carrier No. 1
16 7H0767H076 C clutch (direct) snap ring
17 7B4777B477 C clutch (direct) pressure plate
18 7H0957H095 C clutch (direct) friction plates (quantity model dependent)
19 7F2387F238 C clutch (direct) steel plates (quantity model dependent)
20 7B4927B492 C clutch (direct) balance dam retainer
21 7F2347F234 C clutch (direct) balance dam inner seal
22 7C0007C000 C clutch (direct) balance dam outer seal
23 7H3597H359 C clutch (direct) balance dam
24 7B4887B488 C clutch (direct) piston return spring
25 7C1177C117 C clutch (direct) piston
26 7G4447G444 C clutch (direct) piston inner seal
27 7C0007C000 C clutch (direct) piston outer seal
28 7P1827P182 CDF clutch cylinder
29 7D0637D063 Sun gear No. 3
30 7D0067D006 Planetary carrier No. 3
31 7B4217B421 D clutch (low) snap ring
32 7G4867G486 D clutch (low) pressure plate
33 7E3127E312 D clutch (low) friction plates (quantity model dependent)
34 7G4747G474 D clutch (low) steel plates (quantity model dependent)
35 7P1767P176 D clutch (low) apply ring
36 7B4927B492 D clutch (low) balance dam retainer
37 7D3437D343 D clutch (low) balance dam
38 7G4457G445 D clutch (low) balance dam outer seal
39 7F2347F234 D clutch (low) balance dam inner seal
40 7D4057D405 D clutch (low) piston return spring
41 7D4027D402 D clutch (low) piston
42 7G4457G445 D clutch (low) piston outer seal
43 7G4447G444 D clutch (low) piston inner seal
44 7P2007P200 F clutch (high) keeper snap ring
45 7H3187H318 F clutch (high) snap ring keeper
46 7P1747P174 F clutch (high) snap ring
47 7A4507A450 F clutch (high) pressure plate
48 7E3137E313 F clutch (high) friction plates (quantity model dependent)
49 7E3167E316 F clutch (high) steel plates (quantity model dependent)
50 7P1757P175 F clutch (high) apply ring
51 7P1727P172 F clutch (high) balance dam retainer
52 7P1717P171 F clutch (high) balance dam
53 7A5907A590 F clutch (high) balance dam outer seal
54 7C2957C295 F clutch (high) piston return spring
55 7R2477R247 F clutch (high) piston
56 7A5907A590-B-B F clutch (high) piston and balance dam seals (2 required)
57 7A5907A590-A-A F clutch (high) piston seal

E Clutch and input shaft assembly


Item Part Number Description
1 7H3617H361 Ring gear No. 3 outer snap ring
2 7H0537H053 Ring gear No. 3
3 7H3617H361 Ring gear No. 3 inner snap ring
4 7F3737F373 Thrust bearing (T6)
5 7G0917G091-A-A Input shaft front Teflon® seals (5 required)
6 7G0917G091-B-B Input shaft-to-sun gear No 3 shaft Teflon® seals (5 required)
7 7J4107J410 Input shaft snap ring
8 70157015 Input shaft
9 7G2427G242 Input shaft D-ring seals (3 required)
10 7G0917G091 Input shaft Teflon® seal
11 7D0627D062 Shell and sun gear No. 4
12 7G0087G008 Thrust bearing (T7)
13 7H3657H365 E clutch (forward) balance dam retainer
14 7F2277F227 E clutch (forward) balance dam outer seal
15 7P1697P169 E clutch (forward) balance dam
16 7A2627A262 E clutch (forward) piston
17 7B0667B066 E clutch (forward) apply plate (2.9-3.0 mm)
18 7H0917H091 E clutch (forward) friction plates (quantity model dependent)
19 7H0897H089 E clutch (forward) steel plates (quantity model dependent)
20 7B0667B066 E clutch (forward) pressure plate (select fit)
21 7B0707B070 E clutch (forward) piston return spring
22 7G2427G242 E clutch (forward) piston and balance dam inner seals (2 required)
23 7P2117P211 E clutch (forward) hub

Component Location


Item Part Number Description
1 A clutch assembly
2 B clutch assembly
3 C clutch assembly
4 D clutch assembly
5 E clutch assembly
6 F clutch assembly
7 One-Way Clutch (OWC)

    Description and Operation - Transmission Description - Overview

    Overview The 10R60 automatic transmission is a 10-speed electronically controlled transmission with a main control valve body unit with 8 solenoids and a torque converter...

    Description and Operation - Transmission Description - System Operation and Component Description

    System Diagram Item Description 1 SSB 2 SSC 3 SSD 4 SSE 5 SSF 6 LPC 7 TSS 8 ISSB 9 Transmission 10 Transmission 11 TFT..
