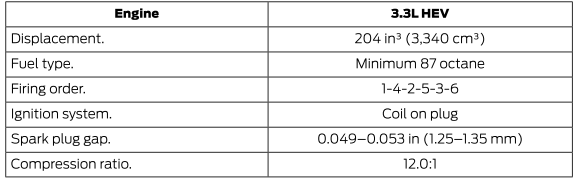

Ford Explorer: Capacities and Specifications / Engine Specifications - 3.3L, Hybrid Electric Vehicle (HEV)
Ford Explorer 2020-2026 Owners Manual / Capacities and Specifications / Engine Specifications - 3.3L, Hybrid Electric Vehicle (HEV)
Drivebelt Routing
Engine Specifications - 3.3L, Gasoline
Drivebelt Routing
A - Long drivebelt is on second pulley groove farthest from engine.
B - Short drivebelt is on first pulley groove closest to engine...
