Ford Explorer: Supplemental Climate Control / Removal and Installation - Cabin Heater Coolant Diverter Valve

Ford Explorer 2020-2024 Service Manual / Electrical / Climate Control System / Supplemental Climate Control / Removal and Installation - Cabin Heater Coolant Diverter Valve

Special Tool(s) / General Equipment

Hose Clamp(s)
Hose Clamp Remover/Installer

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Drain the cooling system.
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03D Engine Cooling - 3.3L Duratec-V6 – Hybrid (BP), General Procedures).

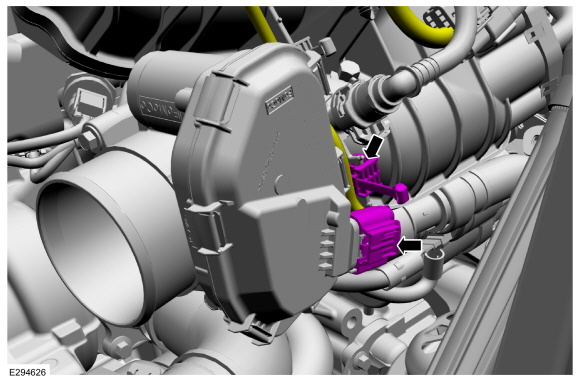

  1. Release clamps and position aside coolant lines.
    Use the General Equipment: Hose Clamp(s)
    Use the General Equipment: Hose Clamp Remover/Installer
    • Disconnect the electrical connector.
    • Remove the retainer and the cabin heater coolant diverter valve.
      Torque: 80 lb.in (9 Nm)

Installation

  1. To install, reverse the removal procedure.
  1. Fill and bleed the cooling system.
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03D Engine Cooling - 3.3L Duratec-V6 – Hybrid (BP), General Procedures).
