Ford Explorer: Engine Emission Control - 2.3L EcoBoost (201kW/273PS) / Removal and Installation - Crankcase Ventilation Tube

Special Tool(s) / General Equipment

Materials

Removal

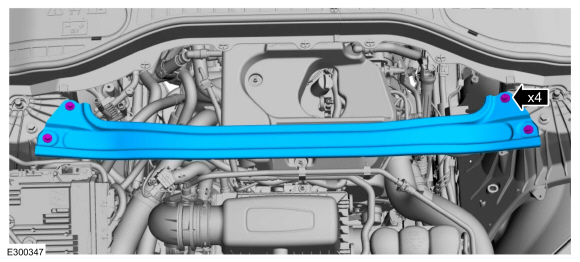

1. Remove the bolts and the suspension support bar.

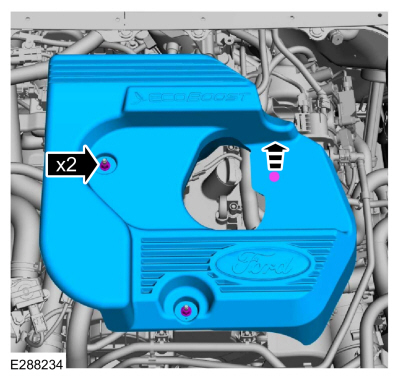

1. NOTICE: Do not pull the engine appearance cover forward or sideways to remove. Failure to press straight upward on the underside of the cover at the attachment points may result in damage to the cover or engine components.

   • Remove the engine appearance cover nuts.

   • Place your hand under the engine appearance cover at each grommet location and push straight up to release each grommet from the studs.

   • After all of the grommets have been released from the studs, remove the appearance cover from the engine.

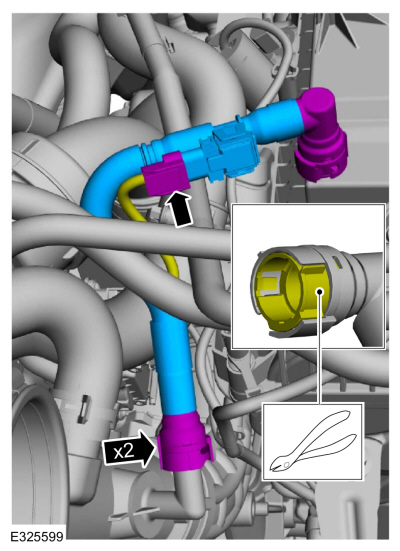

1. NOTE: The crankcase vent tube may have either a permanent or quick connect connector at one or both ends. If the tube needs to be removed for any reason, the permanent connector(s) must be cut to remove the tube. The tube will then need to be replaced.

   NOTE: If the crankcase vent tube is replaced, the replacement part may not come with a crankcase pressure sensor. If so, the PCM will need to be reprogrammed.

   • If equipped, disconnect the wiring harness electrical connector.

   • If necessary, cut the lock tab.
     Use the General Equipment: Side Cutter Pliers
   • If either crankcase vent tube connector was cut, remove and discard the crankcase vent tube.


Installation

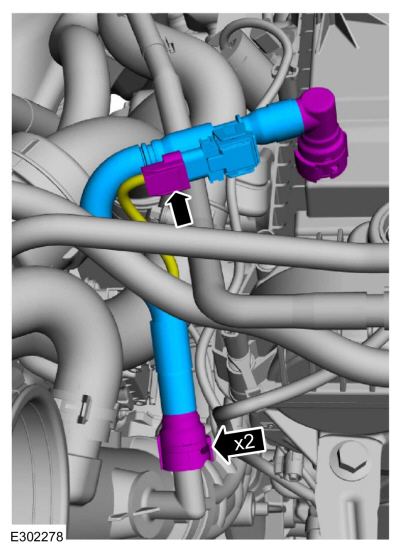

1. • Install the new crankcase vent tube.

   • If the replacement crankcase vent tube part comes with no crankcase pressure sensor, reprogram the PCM.
     Refer to: Module Programming (418-01 Module Configuration, General Procedures).

   • If the replacement crankcase vent tube came without a crankcase pressure sensor, tape the wiring harness electrical connector back to the wiring harness.

   • If the replacement crankcase vent tube comes with a crankcase pressure sensor, connect the wiring harness electrical connector.

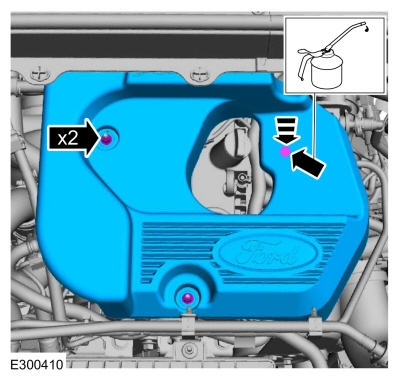

1. 1. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

      Lubricate each grommet with silicone grease.
      Material: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)
   2. Position the engine appearance cover onto engine with the grommet aligned with the stud.

   3. Press down on the engine appearance cover at the grommet location to attach the grommet onto the stud and install the nuts.
      Torque: 44 lb.in (5 Nm)

1. Install the suspension support bar and the bolts.
   Torque: 22 lb.ft (30 Nm)
