Ford Explorer: Interior Trim and Ornamentation / Removal and Installation - D-Pillar Trim Panel - Police
Special Tool(s) /
General Equipment
Removal
NOTE:
LH (left hand) shown, RH (right hand) similar.
-
Position the liftgate opening weatherstrip aside.
-
Release the D-pillar trim panel clips.
-
Release the D-pillar trim panel outer lower clip.
Use the General Equipment: Interior Trim Remover
-
Release the D-pillar trim panel outer upper pin-type clip.
Use the General Equipment: Interior Trim Remover
-
Release the D-pillar trim panel front lower clips.
Use the General Equipment: Interior Trim Remover
-
Мелбет онлайн
NOTICE:
The D-pillar trim panel must be positioned downward
to allow the upper clips to release correctly. Failure to follow this
direction may cause damage to the D-pillar trim panel.

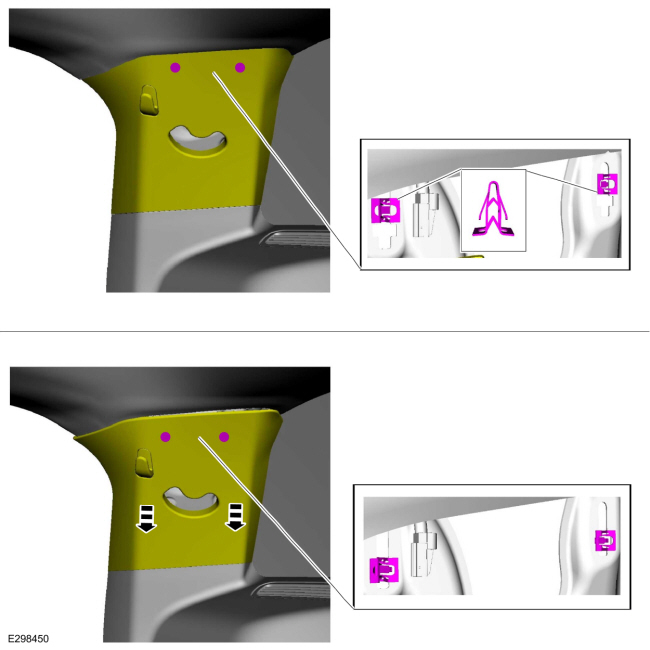

Slide the D-pillar trim panel down, aligning the upper clips to the slots in the sheet metal.
-
Remove the D-Pillar trim panel.
Installation
-
To install, reverse the removal procedure.
