Ford Explorer: Handles, Locks, Latches and Entry Systems / Removal and Installation - Rear Door Latch
Removal
NOTE:
Base vehicle shown, Police vehicle similar.
NOTE:
LH (left-hand) side shown, RH (right-hand) side similar.
All vehicles
-
Remove the rear door window regulator and motor.
Refer to: Rear Door Window Regulator and Motor (501-11 Glass, Frames and Mechanisms, Removal and Installation).
-
Remove the exterior rear door handle.
Refer to: Exterior Rear Door Handle (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).
-
Remove the aft rear door glass run and bracket.
-
Remove the bolts from the aft rear door glass run and bracket.
Torque:
62 lb.in (7 Nm)
-
Remove the aft rear door glass run and bracket.
-
Remove the screw from the exterior rear door handle reinforcement.
Torque:
62 lb.in (7 Nm)
-
Remove the rear door latch bolts.
Torque:
71 lb.in (8 Nm)
Police vehicles
-
Remove the rear door latch.
-
Route the interior rear door handle cable
through the inner door and disconnect the wiring harness routing clips.
-
Disconnect the rear door latch electrical connector.
-
Disconnect the manual rear door lock cable routing clips
-
Remove the manual rear door lock cable access cover and disconnect the manual rear door lock cable.
-
Remove the rear door latch and the manual rear door lock cable.
Base vehicles
-
Remove the rear door latch.
-
Disconnect the wiring harness routing clips and
position the exterior rear door handle reinforcement wiring harness
aside.
-

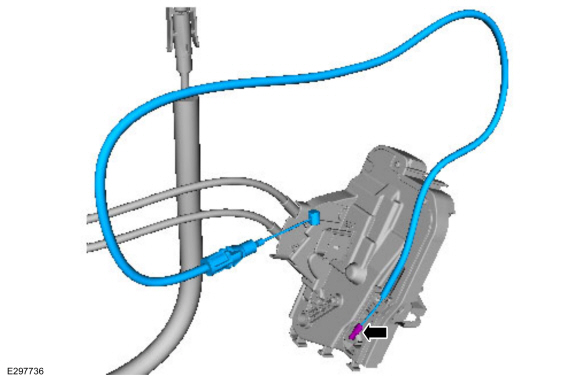

Disconnect the rear door latch electrical connector.
-
Route the interior rear door handle cable through the inner door.
-
Remove the rear door latch.
All vehicles
-
NOTE:
This step is only necessary when installing a new component.
Release the cable tension by turning the release screw until the handle lever releases from the stop.
-
Turn the release screw until the handle lever releases from the stop.
-
Release the handle lever from the stop.
-
NOTE:
This step is only necessary when installing a new component.
Remove the exterior rear door handle reinforcement.
-
Press the locking tab down.
-
Release the cable from the routing clips and detach the exterior rear door handle reinforcement.
-
Detach the cable from the exterior rear door handle reinforcement cable bracket.
-
Remove the cable eyelet from the lever.
-
NOTE:
This step is only necessary when installing a new component.
Remove the rear door latch bracket.
-
Release the retaining tabs on the rear door latch bracket.
-
Release the retaining tabs on the rear door latch bracket.
-
Remove the rear door latch bracket.
-
NOTE:
This step is only necessary when installing a new component.
Remove the exterior rear door handle reinforcement to rear door latch cable access cover.
-
NOTE:
This step is only necessary when installing a new component.
Remove the exterior rear door handle reinforcement to rear door latch cable.
-
NOTE:
This step is only necessary when installing a new component.
Remove the interior rear door handle cable and lock indicator cable access covers.
-
If not previously removed.
Remove the lock indicator cable access cover.
-
Remove the interior rear door handle cable access cover.
-
NOTE:
This step is only necessary when installing a new component.
Remove the interior rear door handle cable and lock indicator cable.
-
If not previously removed.
Remove the lock indicator cable.
-
Remove the interior rear door handle cable.
Installation
-
To install, reverse the removal procedure.
-
NOTE:
This step is only necessary when installing a new component.
NOTE:
This step must be done correctly or the exterior door handle will not engage the lever on installation.
Position the exterior rear door handle reinforcement in the service position.
-
While keeping tension on the cable and holding the handle lever in the engaged position against the stop.
-
Turn the release screw until the handle lever is positioned against the stop.
