Ford Explorer: Wipers and Washers / Removal and Installation - Rear Window Wiper Pivot Arm

Ford Explorer 2020-2025 Service Manual / Body and Paint / Body and Paint / Wipers and Washers / Removal and Installation - Rear Window Wiper Pivot Arm

Special Tool(s) / General Equipment

Two Leg Puller

Removal

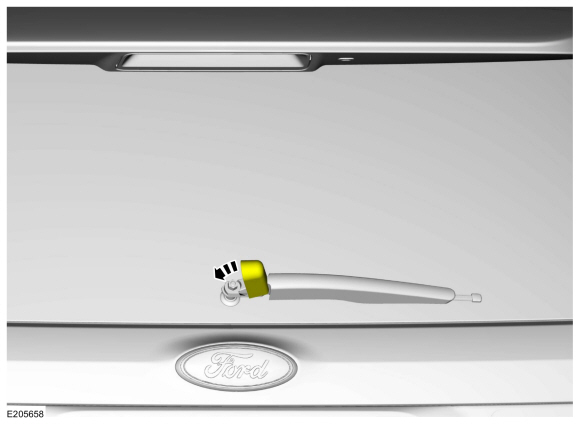

  1. Open the wiper pivot arm nut cover.

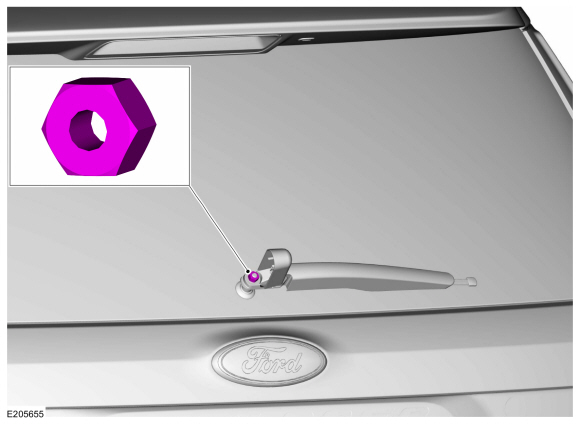

  1. Remove the wiper pivot arm nut.

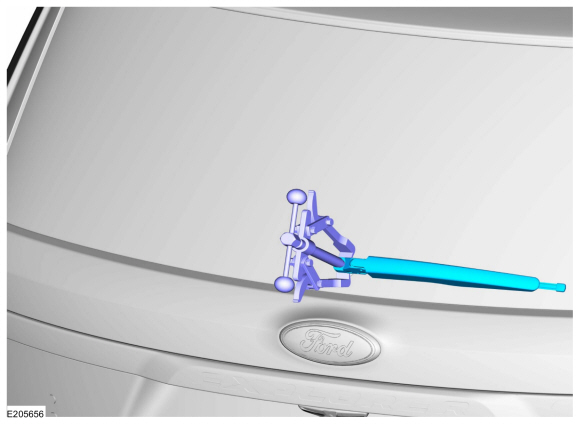

  1. Remove the wiper pivot arm.
    Use the General Equipment: Two Leg Puller
https://magicaliptv.com/iptv-free-trials/

Installation


  1. Verify the windshield wiper motor is in the PARK position.

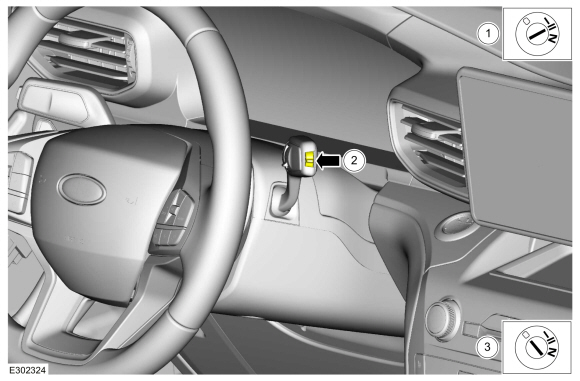

    1. Turn the ignition ON.
    1. Operate the switch ON then OFF to cycle the rear windshield wiper motor.
    1. Turn the ignition OFF.

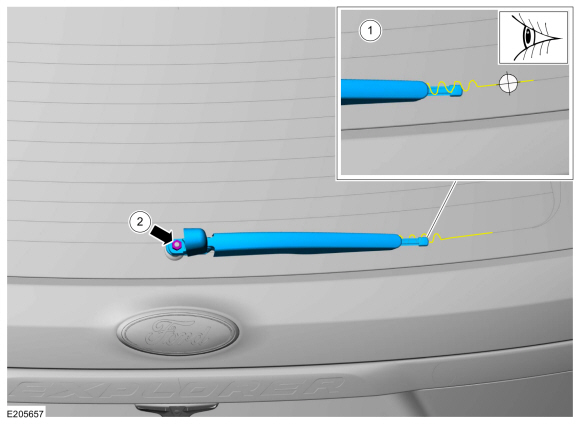

  1. Install the wiper pivot arm.
    1. Align the wiper blade on the 2nd defroster grid line.
    1. Install the wiper pivot arm nut.
      Torque: 106 lb.in (12 Nm)

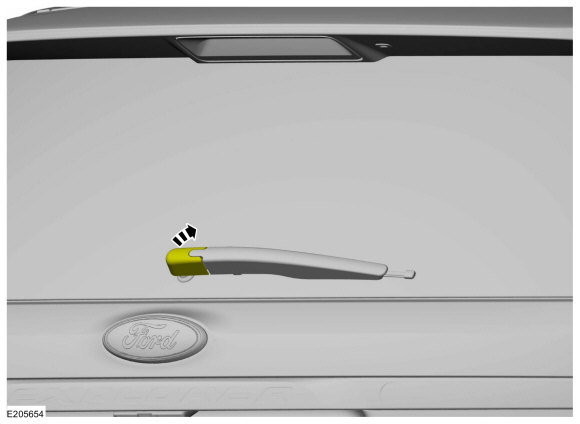

  1. Close the wiper pivot arm nut cover.

    Removal and Installation - Rear Window Wiper Motor

    Removal NOTE: Removal steps in this procedure may contain installation details. Remove the rear window wiper pivot arm. Refer to: Rear Window Wiper Pivot Arm (501-16 Wipers and Washers,..

    Removal and Installation - Windshield Washer Fluid Level Sensor

    Special Tool(s) / General Equipment Fluid Suction Gun Fluid Container Materials Name Specification Motorcraft® Premium Windshield Wash Concentrate with BitterantZC-32-B2 WSS-M..
