Ford Explorer: Wipers and Washers / Removal and Installation - Rear Window Wiper Motor
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the rear window wiper pivot arm.
Refer to: Rear Window Wiper Pivot Arm (501-16 Wipers and Washers, Removal and Installation).
-
Remove the liftgate trim panel.
Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

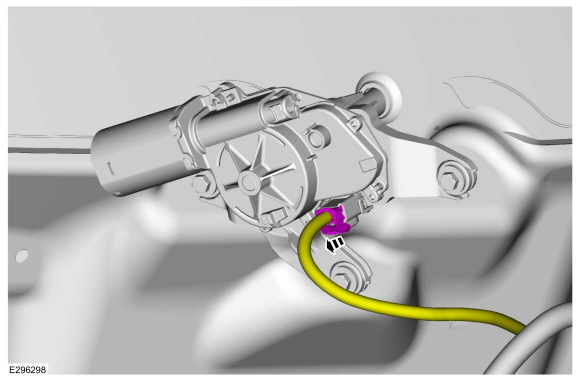

Disconnect the rear window wiper motor electrical connector.
-
Remove the retainers and the rear window wiper motor.
Torque:
80 lb.in (9 Nm)
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the rear parking aid camera.
Refer to: Rear Parking Aid Camera (413-13B Parking Aid - Vehicles Wit..
Special Tool(s) /
General Equipment
Two Leg Puller
Removal
Open the wiper pivot arm nut cover.
Remove the wiper pivot arm nut...
