Ford Explorer: Front Drive Axle/Differential / Removal and Installation - Drive Pinion Seal
Special Tool(s) /
General Equipment
|
205-1065 Installer, Pinion Seal |
|
205-199
(T83T-3132-A1)
Installer, Spindle/Axle Shaft T83-4000-A TKIT-1983-F TKIT-1983-FLM TKIT-1983-FX |
Flat Headed Screw Driver |
Materials
Name |
Specification |
Motorcraft® High Temperature 4x4 Front Axle and Wheel Bearing Grease XG-11 |
WSS-M1C267-A1
|
Removal
-
Remove the front driveshaft.
Refer to: Front Driveshaft (205-01 Driveshaft, Removal and Installation).
-

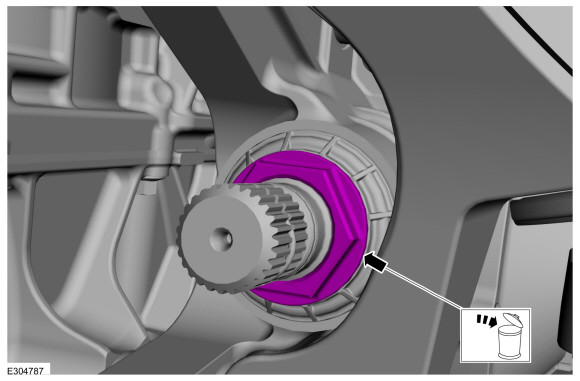

Remove and discard the front axle drive pinion stem nut.
-

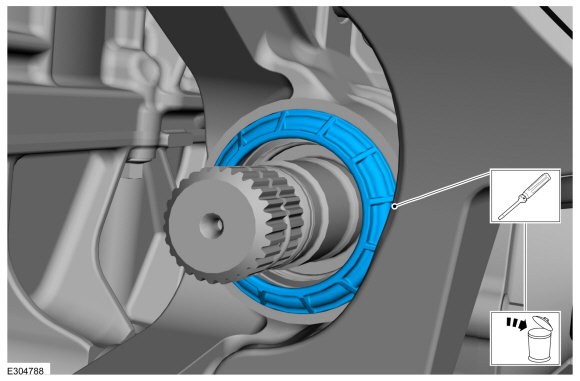

Using a general equipment, remove and discard the front drive pinion seal dust cover.
Use the General Equipment: Flat Headed Screw Driver
-

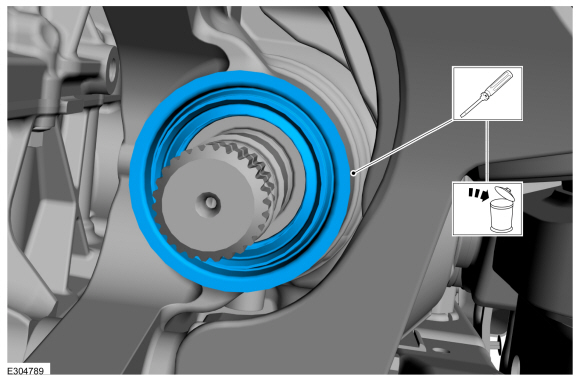

Using a general equipment, remove and discard the front drive pinion seal.
Use the General Equipment: Flat Headed Screw Driver
Installation
-
NOTE:
Make sure that the component is clean, free of foreign material and lubricant.

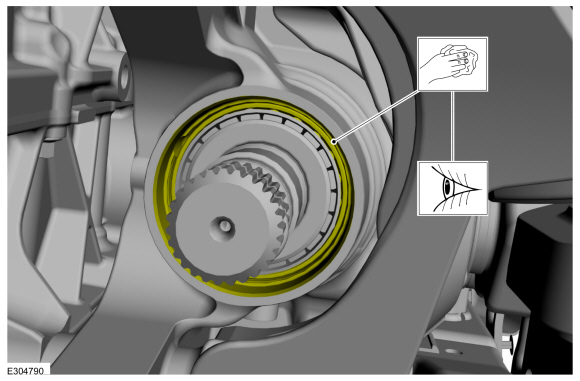

Clean and inspect the front drive pinion oil seal matting surface.
-

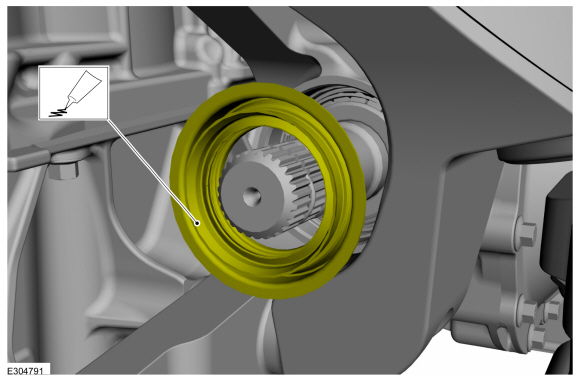

Lubricate the new drive pinion seal lip with grease.
Material: Motorcraft® High Temperature 4x4 Front Axle and Wheel Bearing Grease
/ XG-11
(WSS-M1C267-A1)
-
NOTE:
Installation of the halfshaft oil seal without the correct tools can result in early seal failure.
NOTE:
Do not disassemble the new oil seal.
Install the new drive pinion seal onto a suitable special tool.

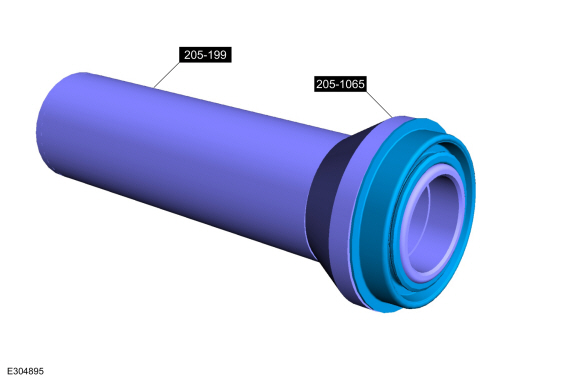

Use Special Service Tool: 205-1065
Installer, Pinion Seal.
, 205-199
(T83T-3132-A1)
Installer, Spindle/Axle Shaft.
-
NOTICE:
Strike only the handle. Directly striking the installer tool will damage the seal.

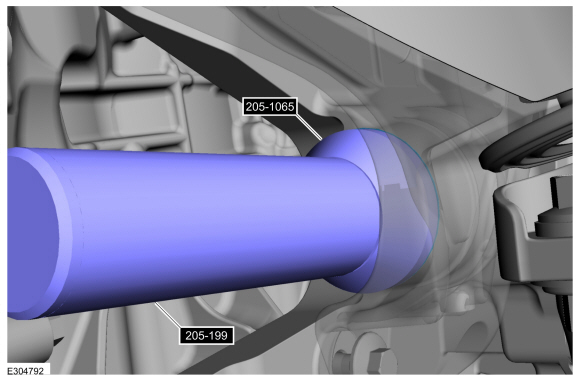

Using the special tools, install the new drive pinion seal.
Use Special Service Tool: 205-1065
Installer, Pinion Seal.
, 205-199
(T83T-3132-A1)
Installer, Spindle/Axle Shaft.
-

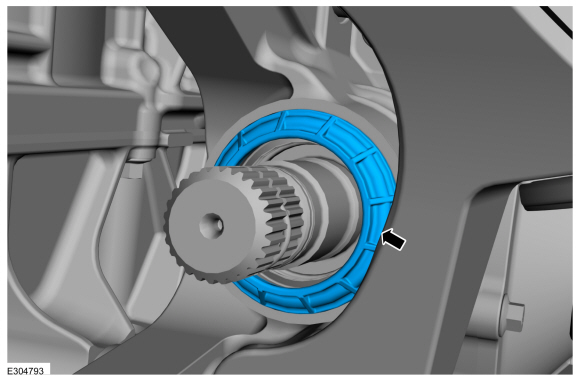

Install the new drive pinion seal dust cover.
-
NOTE:
This step require the aid of another technician.

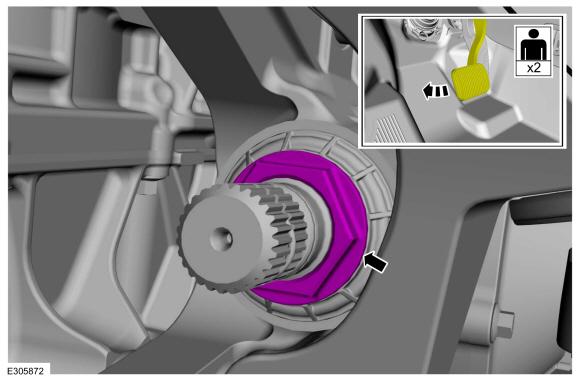

Install the new front axle drive pinion stem nut.
Torque:
266 lb.ft (360 Nm)
-
Install the front driveshaft.
Refer to: Front Driveshaft (205-01 Driveshaft, Removal and Installation).
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the front RH wheel only.
Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installa..
Materials
Name
Specification
Motorcraft® SAE 75W-140 Synthetic Rear Axle LubricantXY-75W140-QL
WSL-M2C192-A
Removal
With the vehicle in NEUTRAL, position it on a hoi..
