Ford Explorer: Information and Entertainment System - General Information - Vehicles Without: SYNC 3 / Removal and Installation - Voice Microphone
Removal
-
Lower the headliner.
Refer to: Headliner - Lowering (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

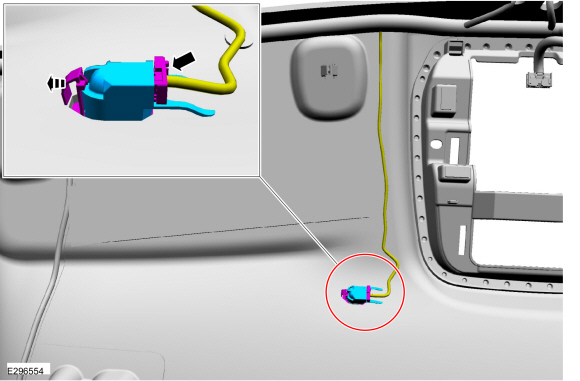

Disconnect the electrical connetor, release the clip and remove the voice microphone.
Installation
-
To install, reverse the removal procedure.
Removal
Lower the headliner.
Refer to: Headliner - Lowering (501-05 Interior Trim and Ornamentation, Removal and Installation).
Disconnect the antenna connector...
Other information:
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH similar.
Open the door.
Remove the check arm bolt.
Torque:
18 lb.ft (25 Nm)
Remove the rear door trim panel...
System Operation
System Diagram - Heated/Ventilated Seats
Item
Description
1
RHVAC
2
MS-CAN
3
SCMF
4
LH Second Row Seat
5
Cushion Temperature Sensor
6
RH Second Row Seat
7
Backrest Heater Mat
8
Cushion Heater Mat
9
Cushion and Backrest Blower Motors
10
Backrest Heater Mat
11
Cushion Heater Mat
..
