Ford Explorer: Information and Entertainment System - General Information - Vehicles Without: SYNC 3 / Removal and Installation - Rear Door Speaker

Ford Explorer 2020-2025 Service Manual / Electrical / Information and Entertainment Systems / Information and Entertainment System - General Information - Vehicles Without: SYNC 3 / Removal and Installation - Rear Door Speaker

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the rear door trim panel.
    Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

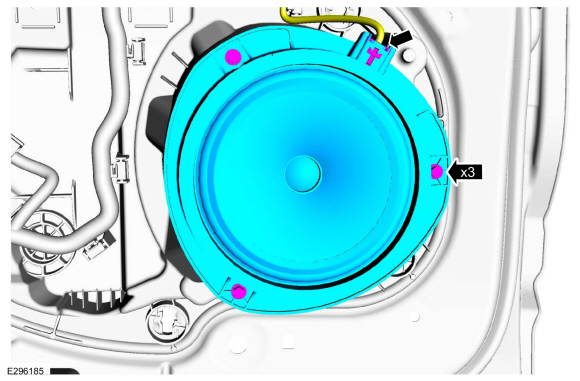

  1. Disconnect the electrical connector, remove the screws and the rear door speaker.
    Torque: 22 lb.in (2.5 Nm)

Installation

  1. To install, reverse the removal procedure.
